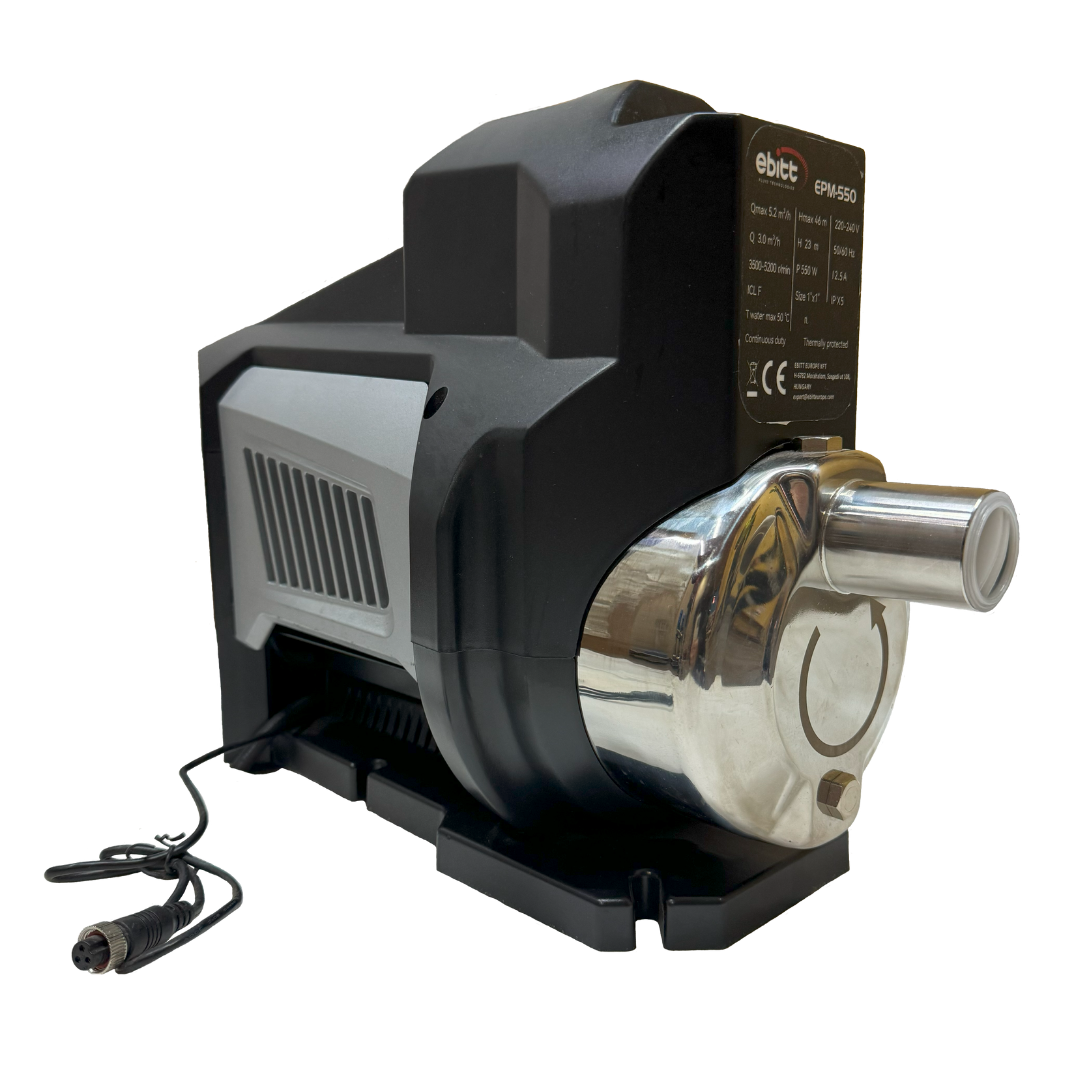

EBITT – EPM
INDUSTRIAL & COMMERCIAL BUILDING TECHNOLOGIES
Product Info
Construction • Multi-stage, centrifugal, permanent magnet driven motor, variable speed pump with a plug and play solution • Pump body made of thickened stainless steel material which is corrossion resistant • Microcomputer control system automatically detect and control the motor to keep always constant pressure by changing frequency • EPM 550 / EPM 680 / EPM 880: G1” connection • EPM 1500 / EPM 2200: G2” connection Applications • For water supply systems domestic and commercial use for garden and irrigation
Features • Integrated frequency converter • Built-in pressure vessel • High efficiency permanent magnet driven motor • Motor power / voltage control • Programmable menu • Monitoring pressure and current Protections • Dry run protection • Overland control and overheating motor control • Power supply control • Pump clockage prevention • Stop delay function • Detects small leakages in system
Materials • Stainless steel pump body, PPO impeller, carbon-ceramic- NBR mechanical seal
Operating Conditions • Liquid temperature: 0°C to 75°C • Ambient temperature: 50°C • Max. casing temperature: 10 bar • Suction lift: up to 8m
Motor • Max Head (m) • Variable speed motor • Max. speed: 5200 rpm • Frequency: 50 Hz / 60 Hz • Voltage: 165 – 260 V • Insulation class: F • Protection: IPX5 • Constructed in accordance with EN60034-1; EN60335-1, EN60335-2-41
